Smart Wifi Touch Switch No Neutral Wire Required Smart Home

Smart Wifi Touch Switch No Neutral Wire Required Smart Home 1/2/3 Gang Light Switch 100~250V Support Alexa Google Home Tuya App 433RF Remote

New Version

1. Upgraded SCR to relay, which has better heat resistance and safety. Also, it works with 100~250V.
2. Upgraded capacitor, which is more powerful and stable.

MAIN FEATURE

433MHz RF Remote Control

This smart switch could be used with 433mhz RF transmitter. Control range: ≤15M.

App Remote Control

As long as your smart phone or tablet has 4G or WIFI network, you can control your lights by the App “Tuya smart or Smart Life”.

Voice control

Perfectly Compatible with Alexa and Work with Google Home. Turn on/off lights with voice commands when your hands are full.

Timing Setting

Setting a schedule or timer on/off your lights on night and morning, and then your will never go back to a dark house when you go back home at dusk. Moreover, you could quietly waked up by scheduled light on every morning.

Sharing&Group Control

Sharing devices with your family members to eliminate extra steps for connection.

Smart Scene

Creating your own scene to trigger ON/OFF home appliances by departure mode, home mode, temperature, humidity, or other environmental conditions.

Safety and Certification

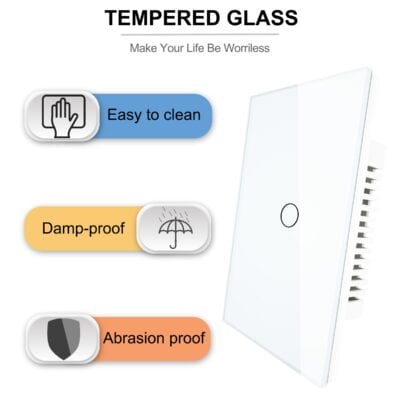

The wall switch adopts premium materials, such as fire-resistant shell, phosphor bronze connects and advanced PC+TEMPERED GLASS, can provide fire prevention, overload protection to protect your family. Our all products certificated by CE, FCC, and RoHS. Without using any harmful chemical substances, please fell relived about usage.

SPECIFICATION

Brand: GIRIER
Material: V0 PC+ Toughened Glass Panel
Voltage: 100-250V 50/60Hz
Rated Current: 10A
Rated Load: 5-150W/Gang
Power Consumption: ≤0.5W
Working Temperature: 0℃~40℃
RF Frequency: 433MHz
WIFI Standard: IEEE 802.11bgn 2.4GHz
Network Security: WPA/WPA2”
Hub requirement: No
Control Mode: APP/RF/Manual
Certification: CE, RoHS
APP: TuyaSmart/Smart Life

NOTE

1. Support most of lamps. We suggest to use over 5W LED lamp for L1. Not support dimmable lamp.
2. The capacitor must be connected with L and N of the lamp of L1 tightly, not behind the switch.
3. This switch is single-pole.

What is in box?

1*Smart wifi switch
1*Capacitor
1*User manual
2*Screws

How to use it?

RF Pairing Method

Step 1: Long press the any of button of the switch until the indicator flash and it will make a sound “di” 1 time.
Step 2: Press any button on RF transmitter to finish pairing, then you will be able to control the light by RF controller.
Reset Method: Press and hold on touch button about 10~15 seconds until hear sound “di” 2 times.

WiFi Pairing Method

Step 1: Search “Smart Life or Tuya Smart” on APP store, Google Play or scan the QR code on user manual to download and install it.
Step 2: Long press any button on the switch until the indicator light blink. You will hear “di” sound as well.
Step 3: Open “Smart Life or Tuya Smart App”, discovery and add device in the app, and then finish configuration according to the guide.

Reset Method: Press and hold on touch button about 10 seconds until the red indicator light flash and the switch will make a sound “di” 1 time.

Note: If you want to use both of control methods, please connect the RF in advance. Otherwise, it will affect WiFi connection.
